Product Details
Place of Origin: Shenzhen
Brand Name: RION
Certification: CE
Model Number: TL740D-CAN2.0A/B
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: $224/Pieces
Packaging Details: 1pcs/box with sponge inside, 100pcs/ctn
Delivery Time: 7 days for samples
Payment Terms: T/T, , Paypal
Supply Ability: 3000 Piece/Pieces per Month
Output Signal: |
CAN2.0A / CAN2.0B |
Mesure Range: |
Azimuth Angle (±180°) |
Acquisition Bandwidth: |
>100Hz |
Azimuth Accuracy: |
<0.1°/min |
Weight: |
130g(Without Cable) |
Vibration: |
5g~10g |
Protecting: |
IP67 |
Positional Accuracy: |
<2mm/m |
Output Signal: |
CAN2.0A / CAN2.0B |
Mesure Range: |
Azimuth Angle (±180°) |
Acquisition Bandwidth: |
>100Hz |
Azimuth Accuracy: |
<0.1°/min |
Weight: |
130g(Without Cable) |
Vibration: |
5g~10g |
Protecting: |
IP67 |
Positional Accuracy: |
<2mm/m |
TL740D CAN OUTPUT ANGULAR GYRO SENSOR.pdf

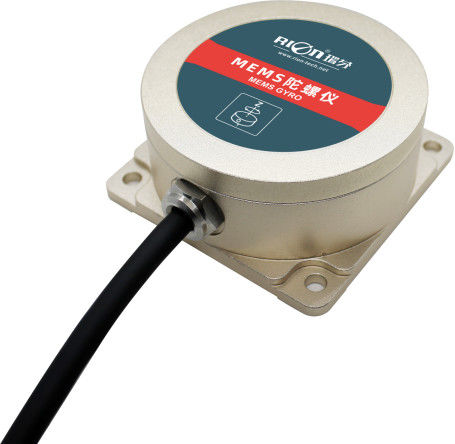

TL740D is RION-TECH newly developed horizontal azimuth angular gyro sensor based on latest MEMS inertial measurement platform , by means of the dynamic attitude algorithm for the angular velocity of gyroscope ,it can simultaneously output carrier’s azimuth angle .The product inernal integrated RION’s Patent Inertial navigation algorithm, through the model of attitude angle data fusion , can solve the gyro short time drift problem as much as possible .
This product is specially used for robot car, AVG vehicle azimuth orientation, attitude control and other related applications of the UAV, instead of the traditional robot vehicle magnetic bar guide shortcomings, no need at the site layout of magnetic stripe, is the necessary navigation components for the next generation of robot vehicle automatic tracing and driving.
All solid state
| TL740D |
PARAMETERS |
| Mesure range | Azimuth Angle (±180°) |
| Acquisition bandwidth | >100Hz |
| Resolution | 0.01° |
| Azimuth accuracy | <0.1°/min |
| positional accuracy | <2mm/m (converted from angle accuracy) |
| Nonlinear | 0.1% of FS |
| Max angle rate | 150°/s |
| Accelerometer range | ±4g |
| Acceleroemter resultuion | 0.001g |
| Acceleroemter accuracy | 5mg |
| Starting time | 5s(Static) |
| Input Voltage | +9V~36V |
| Current | 60mA(12V) |
| Working Temp. | -40 ~ +85℃ |
| Storage Temp. | -40 ~ +85℃ |
| Vibration |
5g~10g |
| Impact | 200g pk,2ms,½sine |
| Working life | 10 years |
| Output rate | 1Hz~100Hz can set |
| Output signal | CAN2.0A / CAN2.0B |
| MTBF | ≥98000 hours /times |
| Insulation resistance | ≥100 Megohm |
| Impact resistance | 100g@11ms,3 Axial Direction (Half Sinusoid) |
| Anti-vibration | 10grms,10～1000Hz |
| Protecting | IP67 |
| Weight | 130g(Without cable) |
★ AGV truck
★ Car Navigation
★ 3D virtual reality
★ Platform stability
★ Auto safety system
★ UAV / Robot
★ Turck-mounted satellite antenna equipment
★ Industrial control
