RION Single Axis Mems Inertial Measurement Unit 0.01 Deg Angle Speed Sensor

angle speed sensor single axis angle rate sensor price low drift angular sensor for AGV

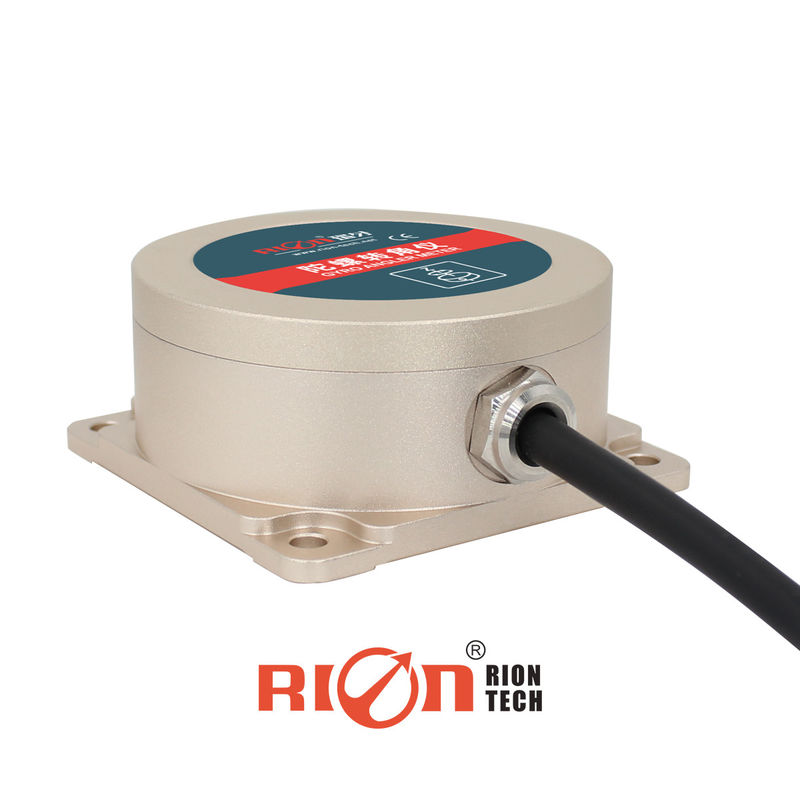

TL740D is RION company newly developed horizontal azimuth angular sensor ,it can simultaneously output carrier's azimuth angle .The product inernal integrated RION's Patent , through the model of attitude angle data fusion , can solve the gyro short time drift problem as much as possible .

This product is specifically used for robotic cars, vehicle azimuth orientation, and other related applications of AGV., instead of the traditional robot vehicle magnetic bar guide shortcomings, no need at the site layout of magnetic stripe, is the necessary navigation components for the next generation of robot vehicle automatic tracing and driving.


Key Features

Azimuth angle output

Strong vibration resistance

Light weight

Long life,strong stability

Cost-effective

All solid state

Compact & light design

RS232/RS485 output optional

DC9~36V power supply



Application

AGV truck

Car Navigation

3D virtual reality

Platform stability

Auto safety system

Turck-mounted satellite antenna equipment

Industrial control
Robot

2. The installation of the instrument should be kept parallel to the surface of the measured object, and reduce the influence of the dynamic and acceleration on the angle meter. Incorrect installation will lead to measurement errors, with particular attention to "surface" and" line "

1)The mounting surface of the instrument fixing must be close, smooth and stable with the measured surface. If the mounting surface is not smooth, the angle error of angle measurement can be caused easily. See figure Pic.AB

2)The axis of the instrument must be parallel to the axis of measurement, and the two axis should not be included angle as far as possible , see figure Pic.CD

3. Do not shake violently during the use of the product, avoid violent vibration, away from the vibration source (if you can not avoid please install the shock absorber), so as not to affect the product measurement accuracy;

4. Try to avoid a sharp acceleration, arrest, sharp turn angular velocity greater than 300 DEG /s movement during use, so as not to affect the measurement precision of products.

5. After the switch is started, the angular gyro sensor needs to be static 20S, and the initial value of the measuring unit is restored, so as to ensure the measurement precision of the product. If there is no such operation, the product can also be used normally, but can not reach the normal precision standard .
