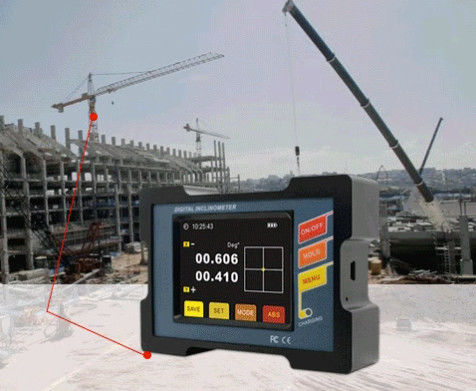

Industrial Grade 2 Axis Digital Inclinometer with Bluetooth for Measurement Data

Industrial Grade 2 Axis Digital Inclinometer with Bluetooth for Measurement Data

▶ GENERAL DESCRIPTION
DMI810-46-BT is a digital inclinometer independently developed by RION Technology, specializing in reading measurement data through Bluetooth for various industrial equipment platforms. The core of this product is using the micro mechanical control principles, dual core measurement units, temperature compensation during the measurement process, and the absolute computing advantage of micro mechanical electronic principles, ensuring the long-term stability and repeatability of instrument measurement. Single axis measurement with a measurement range of ± 46 °, resolution of 0.001 °, best accuracy of<0.03 °, full range, fast response , and stable data. The product is specially designed with strong magnetic adsorption installation on both sides and bottom, and both benchmarks can be used for normal measurement, bringing great convenience to customers. This product has data storage function, three measurement modes to choose from (angle, degree/minute/second, mm/m), and strong scalability Convenient practical application, industrial reliability, and strong cost-effectiveness advantage, it has a very high competitive advantage in the international market!

▶ FEATURES

★ Best accuracy:<0.03 ° ★ Repeatability:0.03°

★ Angle resolution:0.001° ★ Maximum measure range:±46°

★ Data store function ★ IP64 protection

★ Absolute/Relative measurement can switch ★ Both sides and bottom can measure

★ Double benchmark strong magnet installation ★ Working Temperature : -10°～ +70℃

★ Auto-angle interleaved compensation function ★ User can set the alarm value by himself

★ User can calibrate ZERO by himself ★ Built-in rechargeable industry batteries

★ Night vision fours colors screen ★ IP54 protection class

★ deg , deg/min/sec , /mm/m three units switch function ★ Filter frequency optional

★ Three kinds of measurement mode selectable (radian, angle, mm)

▶ APPLICATION
★ Building construction ★ Automobile four-wheel testing ★ Road slope
★ Machinery installation ★ Piping installation ★ Industrial platform
★ Turntable testing ★ Pan unit angle detection ★ Production jig ★Medical instruments


DMI810-46-BT	Parameters	Unit
Measure axis	single axis	axis
Angle measure range	±46	°
Angle measure accuracy ( full measure range )	<0.03	°
Angle measure resolution	0.001	°
mm/m measure range	1035	mm/m
mm/m measure accuracy	0.5	mm/m
mm/m measure resolution	0.02	mm/m
Repeatability	0.03	°
Measure mode	deg,deg/min/sec,mm/m three mode can be set
Working Temperature	-10℃～ +70℃
Working Humidity	85%RH
Power supply	3.7V Charging Lithium Battery
Ideal Charging Time	5 hours
Battery Continuous Working Tim	11hours(No Bluetooth operation)
Data output signal	USB2.0 (Virtual serial device) and Bluetooth read transmission
Match with PC software	VC software
Connect plug in	Standard Usb Connector, Rechargeable
Shock Resistance	10g@11ms,3 Axial Direction (Half Sinusoid)
Shock Impact	10g@11ms,3 Axial Direction (Half Sinusoid)
Waterproof Grade	IP54
Material	Aluminum Alloy Anodizing
LCD screen	64 True Colors Night Vision Display Screen
LCD Visible Area Size	L57.6*W43.2mm
Bluetooth size	L24.57×W11×H67.07mm
Bluetooth weight	≤40g
Digital inclinometer size	L109×W77×H27mm
Digital inclinometer weight	≤350g
