Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE
Model Number: DMI420
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $248.00/Pieces
Packaging Details: digital inclinometer in each wooden box with sponge inside , 20pcs /ctn
Delivery Time: 5-10 work days
Payment Terms: T/T, Paypal
Supply Ability: 1000 Piece/Pieces per Week digital inclinometer in warehouse
Pro 360 Digital Level: |
Read-out With Fractions |
Measuring Range: |
360 Degrees |
Resolution:: |
0.01° |
Working Temperature: |
-20°~ +65℃ |
Protection Class: |
IP54 |
High Anti-impac: |
100g |
°/mm Dual Units Switch Function: |
Night Vision Fours Colors Screen |
Calibrate: |
User Can Calibrate By Himself |
Absolute/Relative Measurement Can Switch: |
Auto-angle Interleaved Compensation Function |
Pro 360 Digital Level: |
Read-out With Fractions |
Measuring Range: |
360 Degrees |
Resolution:: |
0.01° |
Working Temperature: |
-20°~ +65℃ |
Protection Class: |
IP54 |
High Anti-impac: |
100g |
°/mm Dual Units Switch Function: |
Night Vision Fours Colors Screen |
Calibrate: |
User Can Calibrate By Himself |
Absolute/Relative Measurement Can Switch: |
Auto-angle Interleaved Compensation Function |

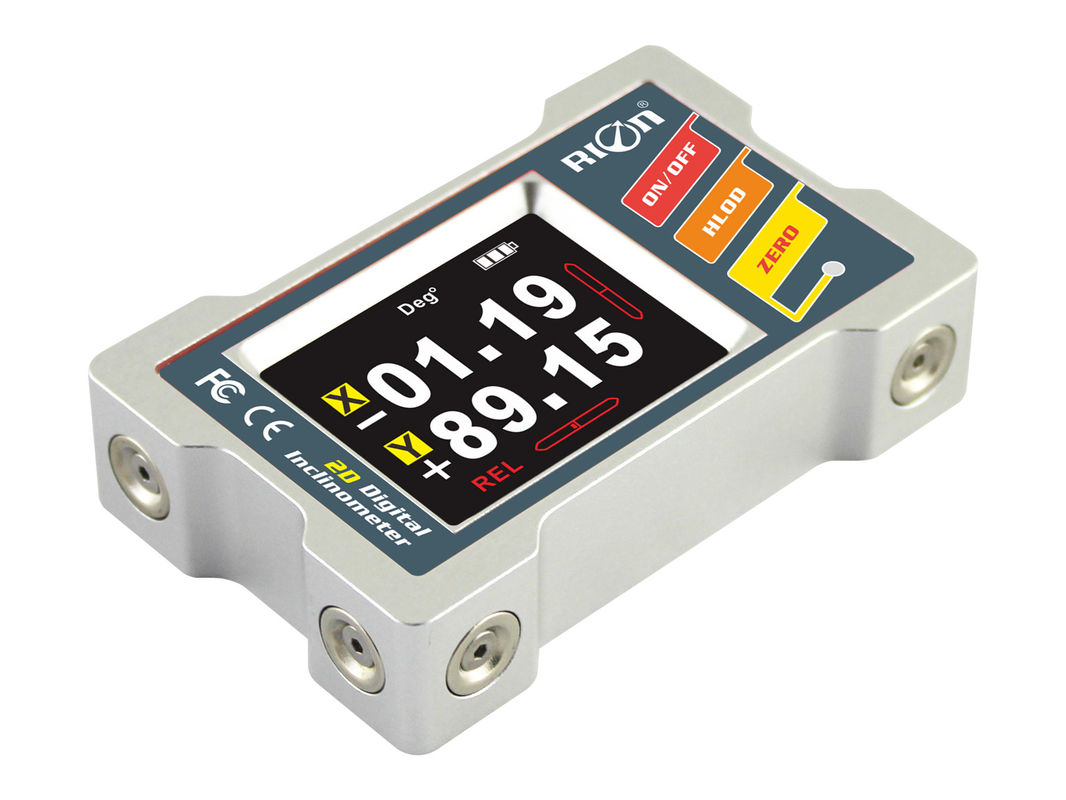

360 Deg Spirit Bubble Digital Bevel Box RION Double Benchmark Angle Meter 2 Axis Digital Inclinometer .
▶ PRODUCT DESCRIPTION
DMI410&DMI420 is a digital display inclinometer which took RION company three years to develop professional for various industry angle control and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,a and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. MI410 single axis ±180° measurement, DMI420 dual axis ±90° measurement,resolution 0.01 °,accuracy <0.05 degree full-scale,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use,This product series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !
▶ KEY FEATURES
★ Auto-angle interleaved compensation function
★ Auto temperature drift compensation
★ User can calibrate by himself
★ Built-in recharge industry battaries
★ Night vision fours colors screen
★ IP54 protection class
★ Angle/length dual unit switch
★ 100g High anti-impact
▶ APPLICATION
★ Building construction
★ Automobile four-wheel testing
★ Road slope
★ Machinery installation
★ Piping installation
★ Industrial platform
★ Turntable testing
★ Cloud deck angle detection
★ Production jig
▶ TECHNICAL DATA
|
PARAMETERS |
DMI410 DMI420 |
|
|
Angle measure range |
±180 ° |
±90 ° |
|
Length measure range |
0~±999.9mm/m |
0~±999.9mm/m |
|
Measure axis |
Single axis |
Dual axis |
|
Angle measure accuracy |
0.05 °(full range) |
0.05 °(full range) |
|
Angle measure resolution |
0.01° |
0.01° |
|
Length measure accuracy |
0.9mm/m(full range) |
0.17mm/m(full range) |
|
Length measure resolution |
0.17mm/m |
0.1mm/m |
|
LCD visible area size |
L40*W32mm |
|
|
Working temperature |
-10℃～ +70℃ |
|
|
Working humidity |
85℃ |
|
|
Power supply |
3.7V Charging Lithium battery |
|
|
Ideal charging time |
3h |
|
|
Battery continuous working time |
8h(±0.5) |
|
|
Data output signal |

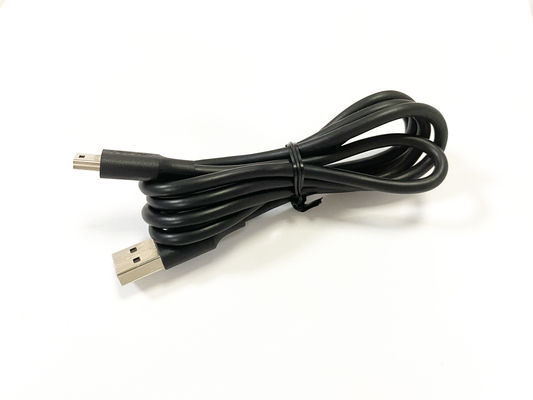

Standard 5Pin USB connector |
|
|
Anti-vibration |
10g@11ms,3 Axial Direction (Half Sinusoid) |
|
|
Impact resistance |
10grms,10～100Hz |
|
|
Weight |
125g |
|
|
Waterproof level |
IP54 |
|
|
Material |
Metal aluminum |
|
|
Size |
L83*W53*H19.2mm |
|
▶ ORDER INFORMATION
| Item No. | Order description |
| DMI410 | Standard single axis digital display inclinometer /measure range ±180°(length 0～±999.9mm/m) |
| DMI420 | Standard Dual axis digital display inclinometer /measure range ±90°(length 0～±999.9mm/m) |
Order Process :
Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .
Payment ways :
T/T, WU or Paypal;
Delivery methods & Time :
DHL takes 3-5days , Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;
Quality Policy :
We gurantee 1 year in free charge .
Storage :
Note usually we don't make any items in stock , samples customize time need around 3-7days .
