Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ISO
Model Number: TL720D
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $60.00/Pieces >=1 Pieces
Packaging Details: Carton
Delivery Time: 7 days for samples
Payment Terms: T/T, Paypal
Supply Ability: 5000 Piece/Pieces per Month
Usage: |
Position Sensor |
Output Signal: |
RS232/RS485 |
Mesuring Range: |
Azimuth Angle (±180) |
Anti-vibration: |
10grms,10~1000Hz |
Azimuth Accuracy (°/min): |
<0.1 |
Output Rate: |
5Hz~200Hz Can Set |
Weight: |
≤135g (including 1 Meter Standard Cable) |
Working Temp.(℃): |
-40 ~ +80 |
Vibration(g): |
5g~10g |
Time Drift: |
20°/h |
Heading Range: |
±180 |
Frequency: |
100hz |
Startup Time: |
500ms |
Gyro Range: |
250°/s |
Shell Size: |
L55×W37×H24mm |
Output Voltage: |
0-5V |
Storage Temp: |
-40 ~ +85 ℃ |
Protecting: |
IP67 |
Usage: |
Position Sensor |
Output Signal: |
RS232/RS485 |
Mesuring Range: |
Azimuth Angle (±180) |
Anti-vibration: |
10grms,10~1000Hz |
Azimuth Accuracy (°/min): |
<0.1 |
Output Rate: |
5Hz~200Hz Can Set |
Weight: |
≤135g (including 1 Meter Standard Cable) |
Working Temp.(℃): |
-40 ~ +80 |
Vibration(g): |
5g~10g |
Time Drift: |
20°/h |
Heading Range: |
±180 |
Frequency: |
100hz |
Startup Time: |
500ms |
Gyro Range: |
250°/s |
Shell Size: |
L55×W37×H24mm |
Output Voltage: |
0-5V |
Storage Temp: |
-40 ~ +85 ℃ |
Protecting: |
IP67 |

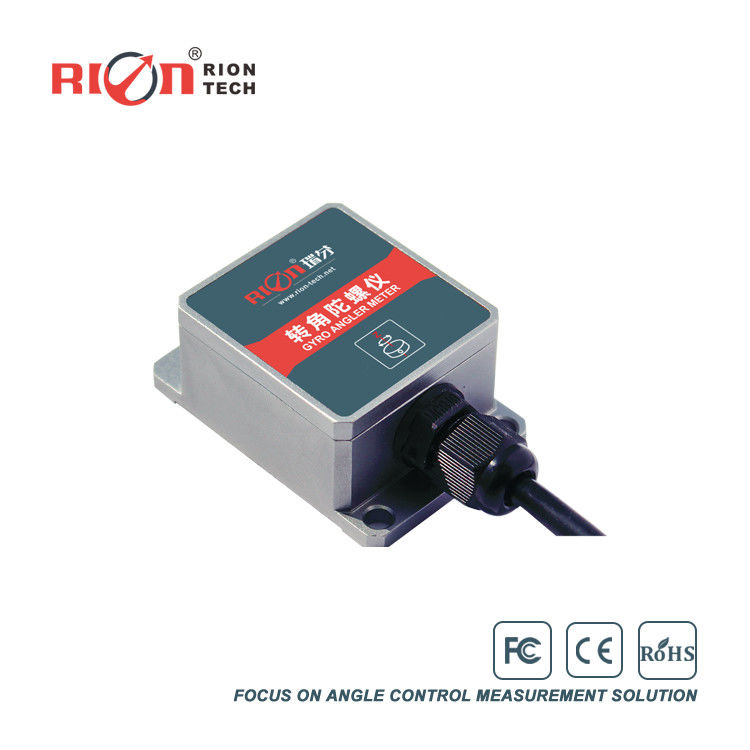

RION TL720D MEMS Gyroscope Sensor The Ultimate Navigation Component for Robot Cars
TL720D IMU DYNAMIC ATTITUDE SENSOR.pdf
General Description
TL720D is RION company newly developed Small volume angular gyro sensor based on latest MEMS inertial measurement platform , by means of the dynamic attitude algorithm for the angular velocity of gyroscope ,it can simultaneously output carrier's azimuth angle .The product inernal integrated RION's Patent Inertial navigation algorithm, through the model of attitude angle data fusion , can solve the gyro short time drift problem as much as possible .
This product is specially used for robot car, AVG vehicle azimuth orientation, attitude control and other related applications of the UAV, instead of the traditional robot vehicle magnetic bar guide shortcomings, no need at the site layout of magnetic stripe, is the necessary navigation components for the next generation of robot vehicle automatic tracing and driving.
● Azimuth angle output ●Strong vibration resistance ●Light weight
●AGV truck
●Platform stability
● Auto safety system
●3D virtual reality
●Industrial control
●Robot
●Car Navigation
●UAV
●Turck-mounted satellite antenna equipment
Notice.
1.The angular gyro sensor should be mounted in the center position of the measured object , in order to reduce the influence of linear acceleration on the measurement accuracy. See below diagram as ref.
2.The installation of the instrument should be kept parallel to the surface of the measured object, and reduce the influence of the dynamic and acceleration on the angle meter. Incorrect installation will lead to measurement errors, with particular attention to "surface" and” line "
1)The mounting surface of the instrument fixing must be close, smooth and stable with the measured surface. If the mounting surface is not smooth, the angle error of angle measurement can be caused easily.
2)The axis of the instrument must be parallel to the axis of measurement, and the two axis should not be included angle as far as possible.
3. Do not shake violently during the use of the product, avoid violent vibration, away from the vibration source (if you can not avoid please install the shock absorber), so as not to affect the product measurement accuracy;
4. Try to avoid a sharp acceleration, arrest, sharp turn angular velocity greater than 300 DEG /s movement during use, so as not to affect the measurement precision of products.
