Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ISO
Model Number: HCM605B-232
Payment & Shipping Terms
Minimum Order Quantity: 1 Units
Price: $510.00/Units
Packaging Details: 1pcs digital compass in each inner box , 200pcs /ctn
Delivery Time: 7 days for sample
Payment Terms: T/T, Paypal
Supply Ability: 1000 pcs per month
Heading Accuracy: |
0.5° Tilt<10° |
Resolution: |
0.1° |
Pitch Range: |
±85° |
Roll Range: |
±180° |
Start Delay: |
<50ms |
Output Format: |
Binary High-performance Protocol |
Current(max): |
30mA |
Operating Range: |
-40℃～+85℃ |
Heading Accuracy: |
0.5° Tilt<10° |
Resolution: |
0.1° |
Pitch Range: |
±85° |
Roll Range: |
±180° |
Start Delay: |
<50ms |
Output Format: |
Binary High-performance Protocol |
Current(max): |
30mA |
Operating Range: |
-40℃～+85℃ |
▶ FEATURE
★ Heading Accuracy: 0.3°～0.5°
★ Roll Range:±180°
★ Tilt Resolution: 0.1°
★ Tilt Accuracy: <0.2°(Full Range)
★ Dimension: L110×W19.5×H19.5mm
★ With Hard-Soft Magnetic And Tilt Compensation
★ RS232/RS485/TTL
▶ APPLICATION
★ Satellite Antenna Search Satellite
★ Gps Integrated Navigation
★ Antenna Servo Control
★ Infrared Imager
★ Laser Range Finder
★ Map For Plotter
★ Rov Underwater Robot Navigation
★ Oceanography Measurement Instruments
★ Special Occasion Robot
▶ PRODUCT INTRODUCTION

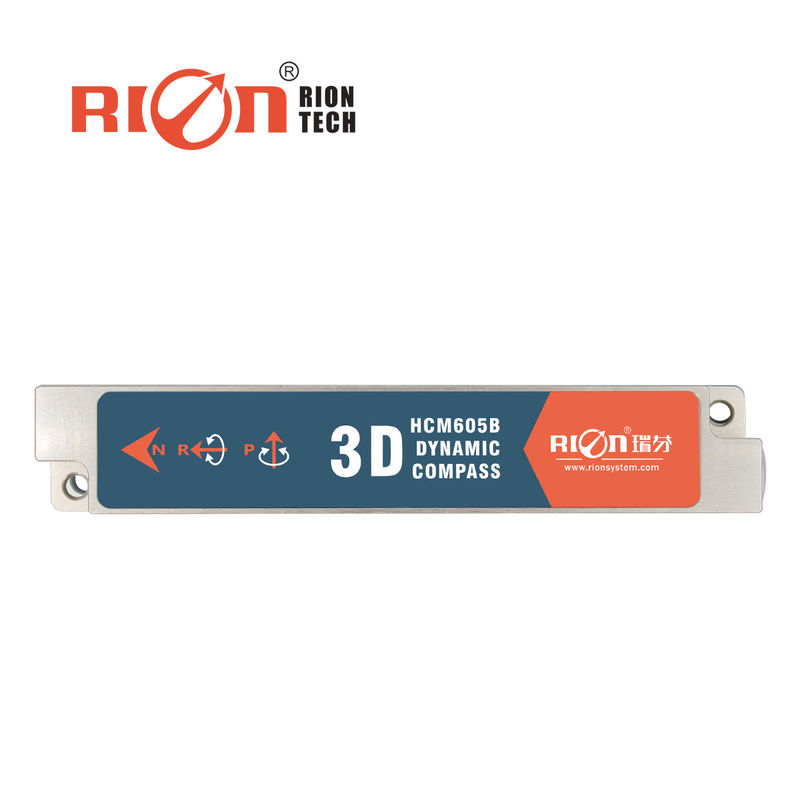

HCM600/HCM605 is a dynamic and high-precision 3 axis electronic compass, it has three working modes: pure compass, 9-axis fusion mode and 9-axis fusion anti-jamming mode (anti-temporary-interference). with high performance, reliability, small size and low power consumption, it is suitable for measuring attitude and heading angles in many fields such as antenna stabilityand vehicles. User can order complete product with housing (up to IP67 waterproof level) or compass module.
| HCM600B/HCM605B parameters | ||
| heading | Heading accuracy | 0.5° tilt<10° |
| Resolution | 0.1° | |
| Tilt parameters | Pitch accuracy | 0.1°<15°(measure range) |
| 0.1°<30°(measure range) | ||
| 0.1°<60°(measure range) | ||
| 0.2°<85°(measure range) | ||
| Pitch range | ±85° | |
| Roll accuracy | 0.1°<15°(measure range) | |
| 0.1°<30°(measure range) | ||
| 0.1°<60°(measure range) | ||
| 0.2°<180°(measure range) | ||
| Roll range | ±180° | |
| Resolution | 0.1° | |
| Calibration | Hard iron calibration | Yes |
| Soft iron calibration | Yes | |
| Magnetic interference calibration | Rotate 360deg horizontally; vertical rotation(option) | |
| Physical feature | Size | L111.5×W19.5×H19.5mm |
| Weight | ≤85g(exclude cable) | |
| RS232/RS485/TTL | 5PIN quick plug connector | |
| interface | Start delay | <50ms |
| Max output speed | 20Hz/s | |
| Communication speed | 2400 to 115200baud (default 9600) | |
| Output format | Binary High-performance Protocol | |
| Power | Power voltage | (default) DC+5V |
| Current(max) | 30mA | |
| Ideal mode | 26mA | |
| Hibernate mode | TBD | |
| Environment | Operating range | -40℃～+85℃ |
| Storage temperature | -40℃～+85℃ | |
| Vibration resistance | 100g | |
| Protection | IP67 | |
| Electromagnetic compatibility | According to EN61000 and GBT17626 | |
| MTBF | ≥40000 hours/time | |
| Insulation resistance | ≥100mego-ohm | |
| Impact resistant | 100g11ms, 3 Axial Direction (Half Sinusoid) | |
| Anti-Vibration | 10grms, 10~1000Hz | |
