Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE
Model Number: DCM302B
Payment & Shipping Terms
Minimum Order Quantity: 1 Pieces
Price: $250.00 - $270.00/Pieces
Packaging Details: Sponge&Cartons
Delivery Time: 7 work days
Payment Terms: T/T, , Paypal
Supply Ability: 30000 Piece/Pieces per Month
Usage: |
Magnetic Sensor |
Theory: |
Other |
Output: |
Digital Sensor |
Heading Accuracy: |
0.5~0.8deg |
Tilt Angle Range: |
+/-90deg |
Tilt Angle Resolution: |
0.1deg |
Tilt Angle Accuracy: |
0.1deg |
Wide Temperature: |
-40 ~85C |
Usage: |
Magnetic Sensor |
Theory: |
Other |
Output: |
Digital Sensor |
Heading Accuracy: |
0.5~0.8deg |
Tilt Angle Range: |
+/-90deg |
Tilt Angle Resolution: |
0.1deg |
Tilt Angle Accuracy: |
0.1deg |
Wide Temperature: |
-40 ~85C |

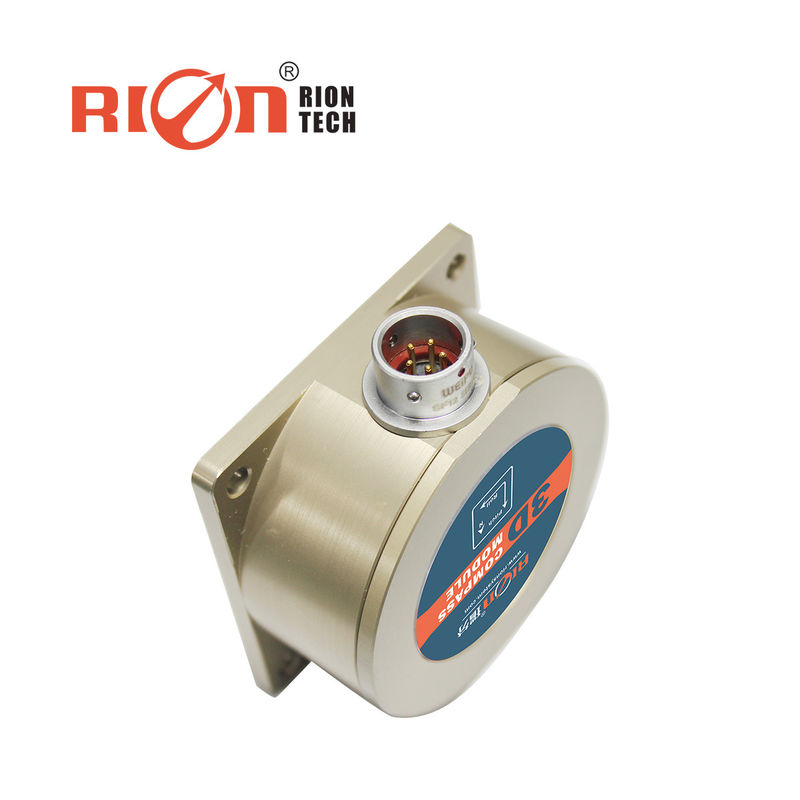

DCM302B MCU Control 0.8deg Magnetic Compass Sensor Inertial Measurement Unit
General Description
DCM302B is a high precision 3D electronic compass using the 2D plane calibration algorithm, the calibration no need 3D posture tilt , just flat-situ rotation a circle to complete the calibration process. Hard magnetic and soft magnetic calibration algorithms are adopted, make the compass eliminate the magnetic influence through calibration algorithm in the magnetic interference environment ,DCM302B integrated three-axis fluxgate sensor, in real time solver heading through the central processor, and using 3-axis accelerometer to proceed heading compensation for the wide range tilt angle, to ensure the compass still can provide high-precision heading data when the tilt angle up to ±85°.Electronic compass integrated high-precision MCU control, various output mode, standard interfaces including RS232/RS485/TTL and other interfaces, and accept other communication interface customization.
Features
Application
| DCM301B&DCM302B | PARAMETER | |
| Compass heading | The best heading accuracy(RMS) | 0.5° tilt<10° |
| 1.0° tilt<30° | ||
| 2.0° tilt<40° | ||
| 2.5° tilt<70° | ||
| Resolution | 0.1° | |
| Compass tilt parameter | Pitch accuracy(RMS) | 0.1°<15°(Measure range) |
| 0.2°<30°(Measure range) | ||
| 0.3°<60°(Measure range) | ||
| 0.3°<85°(Measure range) | ||
| Pitch tilt range | ±85° | |
| Roll accuracy(RMS) | 0.1°<15°(Measure range) | |
| 0.2°<30°(Measure range) | ||
| 0.3°<60°(Measure range) | ||
| 0.3°<85°(Measure range) | ||
| Roll tilt range | ±85° | |
| Resolution | 0.1° | |
| The best tilt compensation range | <40° | |
| Calibration | Hard iron calibration | Yes |
| Soft iron calibration | Yes | |
| Magnetic field interference calibration method | Plane rotation in 1circle(2D Calibration) | |
| Physical features | Dimension | L60×W59×H29mm |
| Weight | PCB:20g,with shell:100g | |
| RS-232/RS485/TTL interface connector | 5PINconnector | |
| Interface features | Start delay | <50MS |
| Maximum output rate | 20Hz/s | |
| Communication rate | 2400 to 19200baud | |
| Output format | Binary high performance protocol | |
| Power | Power supply | (Default)DC+5V |
| (Customized)DC9～36V | ||
| Current(Maximum) | 40mA | |
| Ideal mode | 30mA | |
| Sleep Mode | TBD | |
| Enviroment | Operating range | -40℃～+85℃ |
| Storage temperature | -40℃～+85℃ | |
| Resistance shock performance | 2500g | |
| Electromagnetic compatibility | According to EN61000 and GBT17626 | |
| MTBF | ≥40000 hours/times | |
| Insulation | ≥100M | |
| Anti-shock | 100g@11ms,3 Axial Direction (Half Sinusoid) | |
| Anti-vibration | 10grms,10～1000Hz | |
