Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ISO
Model Number: HCM375-TTL
Payment & Shipping Terms
Minimum Order Quantity: 1 Units
Price: $450.00/Units
Packaging Details: 1pcs digital compass in each inner box , 200pcs /ctn
Delivery Time: 7 days for sample
Payment Terms: T/T, Paypal
Supply Ability: 1000 pcs per month
Heading Accuracy: |
0.5° |
Roll Measure Range: |
±180° |
Tilt Resolution: |
0.1° |
Tilt Accuracy: |
<0.2°(Full Range) |
Dimension: |
L110×W19.5×H19.5mm |
Digital Compass MTBF: |
≥40000 Hours/time |
Heading Accuracy: |
0.5° |
Roll Measure Range: |
±180° |
Tilt Resolution: |
0.1° |
Tilt Accuracy: |
<0.2°(Full Range) |
Dimension: |
L110×W19.5×H19.5mm |
Digital Compass MTBF: |
≥40000 Hours/time |
▶ MAIN FEATURE
●Heading Accuracy: 0.5°
●Roll Measure Range:±180°
●Tilt Resolution: 0.1°
●Tilt Accuracy: <0.2°(Full Range)
●Working Temp.: -40℃~+85℃
●Dimension: L110×W19.5×H19.5mm
●With Hard And Soft Magnetic Calibration
●Rs232/Rs485/Ttl Output
▶ APPLICATION
● Satellite antenna search satellite
● Marine navigation surveying and mapping
● GPS integrated navigation
● Antenna servo control
● Infrared imager
● Laser range finder
● Map for plotter
● ROV underwater robot navigation
● Oceanography measurement instruments
● Special occasion robot

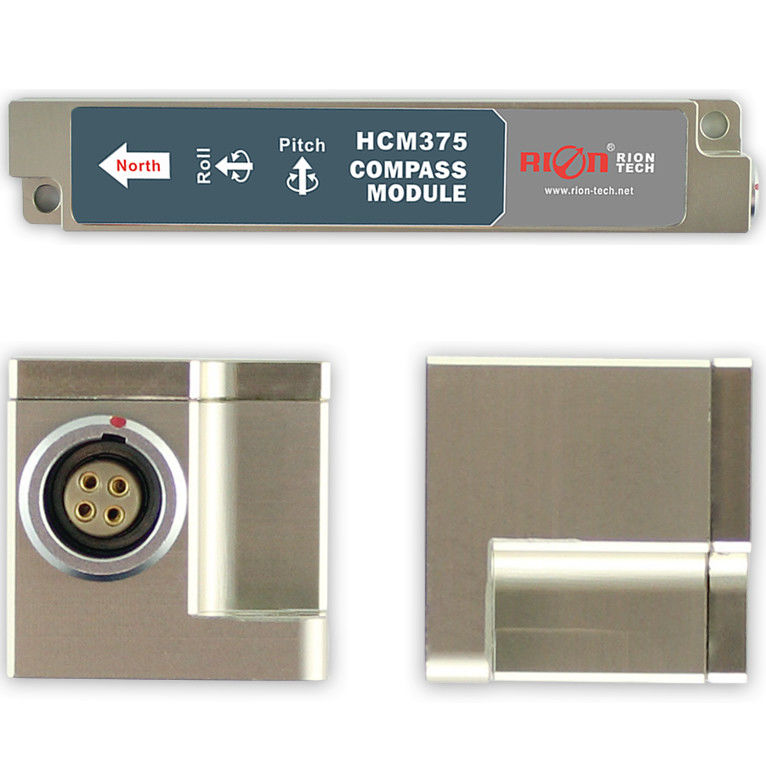

HCM370B-HCM375B integrated patented three -axis flux-gate technology. It calculates heading value in real-time by CUP,
and perform heading value compensation in wide tilt range by using three axis accelerometer. It is high performance and
excellent stability level compass sensor. Its volume is small, power consumption is low. It could widely used in
many application such as antenna installation, vehicle and integrated system, and so on.
| HCM370B / HCM375B Index | ||
| Heading | Heading Accuracy | 0.5° Tilt < 10° |
| 2.0° Tilt < 60° | ||
| 3.0° Tilt < 80° | ||
| Resolution | 0.1° | |
| Tilt | Pitch Accuracy | 0.1°<15° (Measure Range) |
| 0.1°<30°(Measure Range) | ||
| 0.1°<60°(Measure Range) | ||
| 0.2°<85°(Measure Range) | ||
| Pitch Range | ±85° | |
| Roll Accuracy | 0.1°<15°(Measure Range) | |
| 0.1°<30°(Measure Range) | ||
| 0.1°<60°(Measure Range) | ||
| 0.2°<180°(Measure Range) | ||
| Roll Range | ±180° | |
| Resolution | 0.1° | |
| Calibration | Hard Magnetic Calibration | Available |
| Soft Magnetic Calibration | Available | |
| Magnetic Filed Interference Calibration Method |
Rotate 360° Horizontally; Vertical Rotation(Optional) |
|
| RS-232/RS485/TTL | 5Pin Quick Plug Connector | |
| Interface | Start Delay | <50ms |
| Max Output Rate | 20Hz/s | |
| Communication Rate | 2400 TO 19200baud | |
| Output Format | Binary High Performance Protocol | |
| Power Supply | Power Voltage | (Default)DC+5V |
| Current(Max) | 30ma | |
| Ideal Current | 26ma | |
| Sleep Mode | TBD | |
| Environment | Working Temp. | -40℃~+85℃ |
| Storage Temp. | -40℃~+100℃ | |
| Anti-Shock Performance | 100g | |
| Protection Level | IP67 | |
| Electromagnetic Compatibility | According TO EN61000 and BT17626 | |
| Mtbf | ≥40000 Hour/Time | |
| Insulation Resistance | ≥100M.O. | |
| Anit-Impact | 100g@11ms,3Times/Axis(Half Sinusoid) | |
| Anti--Shock | 10grms,10～1000Hz | |
| Dimension | L110×W19.5×H19.5mm | |
| Weight | 70g(Not Include Cable) | |
