Product Details
Place of Origin: CHINA
Brand Name: RION
Certification: CE, ISO
Model Number: MCA416L
Document: MCA416L LOW POWER CONSUMPTI...ER.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD 24/pcs
Packaging Details: carton box, 10 x 5 x 3cm
Delivery Time: 5~7
Payment Terms: T/T, Paypal
Supply Ability: 2000pcs/month
Power Supply: |
DC 9~36V |
Measuring Range: |
30° |
Best Accuracy: |
<0.2° |
Angle Resolution: |
0.1° |
Working Temperature: |
-40°~ +85℃ |
Size: |
61*35*21mm |
Weight: |
60g Without Cable |
Ingress Protection: |
IP67 |
Power Supply: |
DC 9~36V |
Measuring Range: |
30° |
Best Accuracy: |
<0.2° |
Angle Resolution: |
0.1° |
Working Temperature: |
-40°~ +85℃ |
Size: |
61*35*21mm |
Weight: |
60g Without Cable |
Ingress Protection: |
IP67 |

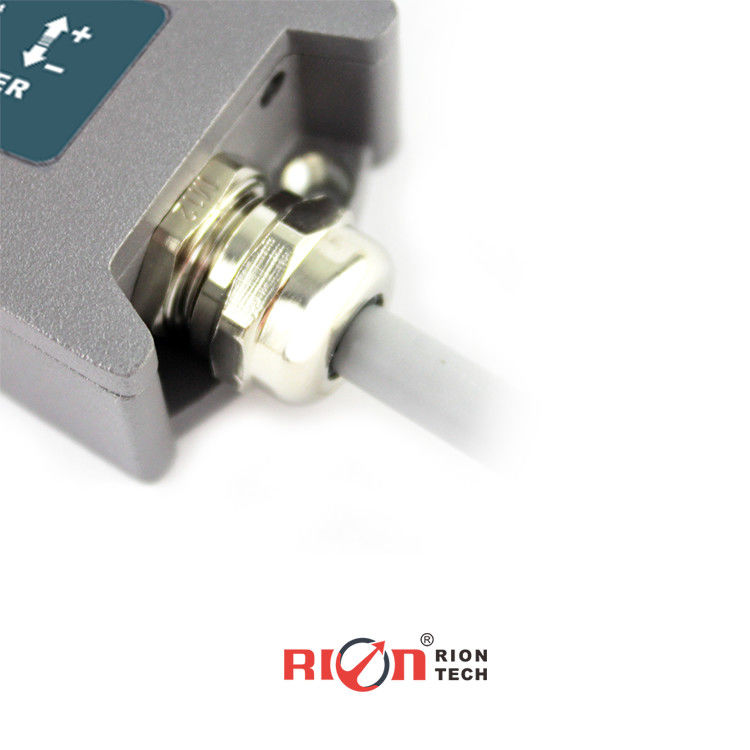

MCA416L Low Power MODBUS Output Inclinometer PV Solar Panel Rotation Angle
MCA416L is a low-power MODBUS output single-axis inclinometer developed by RION Technology for the industrial on-site control. it adopts the latest anti-interference platform design, integrates a new type of micro-mechanical sensing unit, wide temperature working performance, superior anti-vibration performance, and long-term stability. Reliable, effective working life of up to 10 years. This product uses the non-contact principle to measure the inclination angle of the object and calculates the real-time inclination angle by measuring the components produced by the earth's gravity through the internal capacitive micromechanical unit. The installation is simple and convenient. It only needs to be fixed on the object to be measured. It is a real industrial-grade product with reliable and stable performance and good scalability, It is suitable for various harsh industrial control environments such as solar photovoltaic tracking control.
▶ PARAMETERS
| MCA416L | CONDITION | INDEX | UNIT |
| Measure range | / | ±80 | ° |
| Measure axis | / | Single axis(Y axis) | axis |
| Resolution | / | 0.1 | ° |
| Absolute accuracy | @25℃ | 0.2 | ° |
| Zero temp. coefficient | -40～85° | ±0.4 | °/℃ |
| Output Interface | RS485 | ||
| communication protocol | MODBUS | ||
| EMC | According to EN61000 and GBT17626 | ||
| MTBF | ≥50000 hour/time | ||
| Insulation resistance | ≥100 megohm | ||
| Anti-impact | 100g@11ms,three axes direction(half sinusoid) | ||
| Anti-vibration | 10grms,10～1000Hz | ||
| Waterproof grade | IP67 | ||
| Housing material | Sand-grinding oxidation of aluminum alloy | ||
| Screw | Three M4 screws | ||
| Cable | Standard 1-meter length, anti-ultraviolet, shielded cable 4*0.4mm2 | ||
| Weight | 60g (exclude cable) | ||
▶ MAIN FEATURES
★ Single axis tilt angle measurement
★ Range ±80°
★ DC 9～36V power
★ Operation temperature -40～+85℃
★ resolution 0.1°
★ IP67 protection level
★ High anti-vibration performance>2000g
★ Direct lead type interface
★ Output mode MODBUS
▶ APPLICATION
★ Solar photovoltaic tracking control system
★ Concentration tracking control system
★ CSP tracking control system
