Product Details
Place of Origin: Guangdong, China
Brand Name: Rion
Certification: CE
Model Number: HDA436T-485
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $100/Pieces 1-9 Pieces
Packaging Details: box
Delivery Time: 7
Payment Terms: T/T, PayPal
Supply Ability: 5000/month
Power Supply: |
9~36v |
Dynamic Accuracy: |
0.1deg |
Resolution: |
0.01deg |
Static Accuracy: |
0.05deg |
Acceleration Range: |
±8g |
Gyro Range: |
±250°/s |
Weight: |
165g |
Size: |
72x47x22.5mm |
Power Supply: |
9~36v |
Dynamic Accuracy: |
0.1deg |
Resolution: |
0.01deg |
Static Accuracy: |
0.05deg |
Acceleration Range: |
±8g |
Gyro Range: |
±250°/s |
Weight: |
165g |
Size: |
72x47x22.5mm |

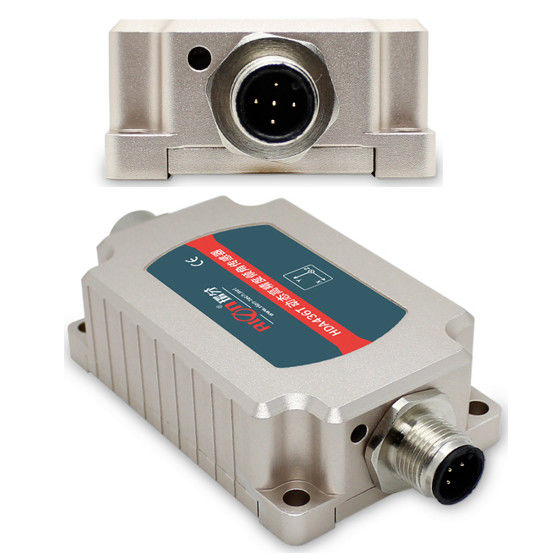

HDA436T Tilt Angle Measurement Three Axis Dynamic Inclinometer Vibration
▶ PRODUCT DESCRIPTION
HDA436T,A new generation of digital MEMS dynamic tilt sensor launched by RION Technology. It can measure the attitude parameters (roll, pitch, and azimuth) of a moving carrier, and suitable for tilt angle measurement under motion or vibration.HDA436T has a built-in high-precision acceleration and gyro sensor, and integrates the Carman filter algorithm, which can measure the real-time motion data of the carrier under motion or vibration. The signal output modes such as RS485 / RS232 / TTL are optional, and the scalability is strong.
This product utilizes a non-contact measurement principle, providing real-time output of attitude and inclination data. It is user-friendly, eliminating the need to track the relative changes between two surfaces. The sensor integrates high-precision analog-to-digital (AD) conversion and gyroscope units to compensate for non-linearities, orthogonal coupling, temperature drift, and centrifugal acceleration in real time. This significantly reduces errors caused by motion-induced centrifugal forces, enhancing dynamic measurement accuracy. The product is designed to perform reliably in complex, long-term operations in challenging environments. It is a dual-mode sensor, capable of both dynamic and static measurements, with strong resistance to external electromagnetic interference, making it an ideal solution for industrial automation posture measurement applications.
▶ KEY FEATURES
★ Range (Roll angle ±180°, pitch angle ±90°, azimuth angle ±180°)
★ Dynamic accuracy: ± 0.1°
★ Static accuracy: ± 0.05°
★ RS485/232/TTL output Optional
★ Wide temperature operation -40~+ 85℃
★ DC 9~6V wide voltage input
★ Resolution 0.01°
★ IP67/IP68 Protection level Optional
▶ PRODUCT APPLICATION
★ Railway locomotive monitoring
★ Drilling rig equipment
★ Pipe jacking with shield technique
★ Geological equipment tilt monitoring
★ Drilling rig orientation navigation
★ Ship navigation attitude measurement
★ Shielded pipe insertion method
★ Satellite communication vehicle attitude detection
★ Orientation measurement based on inclination angle
★ Various engineering machinery inclination measurement
Technical Data
| HDA436T | CONDITION | INDEX | |
| Measure range | - |
Roll ±180°, pitch ±90°, azimuth ±180° |
|
| Measure axis | - | X axis / Y axis / Z axis | |
| Resolution | - | 0.01° | |
| Static accuracy | @25℃ | ± 0.05° | |
| Dynamic accuracy(RMS) | @25℃ | ± 0.1° | |
| Gyro | range | - | ±250°/s |
| Zero bias stability (10s mean) | - | 8.5°/h | |
| Zero Bias Instability(allan) | - | 4.5°/h | |
| Angle random walk coefficient(allan) | - | 0.25°/sqrt(h) | |
| Acceleration | range | - | ±8g |
| Bias stability(10s mean) | - | 0.02mg | |
| Bias instability(allan) | - | 0.005mg | |
| Speed random walk coefficient(allan) | - | 0.005m/s/sqrt(h) | |
| Zero point temp. coefficient | -40～85℃ | ±0.01°/℃ | |
| Sensitivity temp. coefficient | -40～85℃ | ≤100ppm/℃ | |
| Power-on startup time | 1S | ||
| Response time | 0.01S | ||
| Output signal | RS485/RS232/TTL | ||
| Electromagnetic compatibility | According to EN61000 and GBT17626 | ||
| MTBF | ≥ 98000 hours / time | ||
| Insulation resistance | ≥100 Megohm | ||
| Impact resistance | 100g @ 11ms,3 axial direction (half sinusoid) | ||
| Anti-vibration | 10grms,10～1000Hz | ||
| Waterproof level | IP67 | ||
| Cable | Standard without wiring, optional 2m M12 aviation plug with PVC unshielded cable | ||
| Weight | ≤165g (excluding cables) | ||
ELECTRICAL PARAMETERS
| PARAMETER | CONDITION | MIN | TYP | MAX | UNIT | |
| Supply voltage | standard | 9 | 12 | 24 | 36 | V |
| Working current | without load | 60mA(12V) | mA | |||
| Operating temp | -40 | +85 | ℃ | |||
| storage temp | -40 | +85 | ℃ | |||
INSTALLATION METHOD
▶ MECHANICAL PARAMETERS
○ Connector: M12 aviation plug 5P connector
○ Protection level: IP67
○ Shell material: frosted aluminum alloy
○ Installation: Four M4 screws
