Product Details
Place of Origin: Guangdong, China
Brand Name: Rion
Certification: CE
Model Number: HDA436T-232
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $100/Pieces 1-9 Pieces
Packaging Details: box
Delivery Time: 7
Payment Terms: T/T, PayPal
Supply Ability: 5000/month
Output: |
RS232/RS485/TTL/CAN |
Power Supply: |
9~36v |
Dynamic Accuracy: |
0.1° |
Resolution: |
0.01° |
Water Proof: |
IP67 |
Acceleration Range: |
±8g |
Gyro Range: |
±250°/s |
Response Time: |
0.01S |
Output: |
RS232/RS485/TTL/CAN |
Power Supply: |
9~36v |
Dynamic Accuracy: |
0.1° |
Resolution: |
0.01° |
Water Proof: |
IP67 |
Acceleration Range: |
±8g |
Gyro Range: |
±250°/s |
Response Time: |
0.01S |

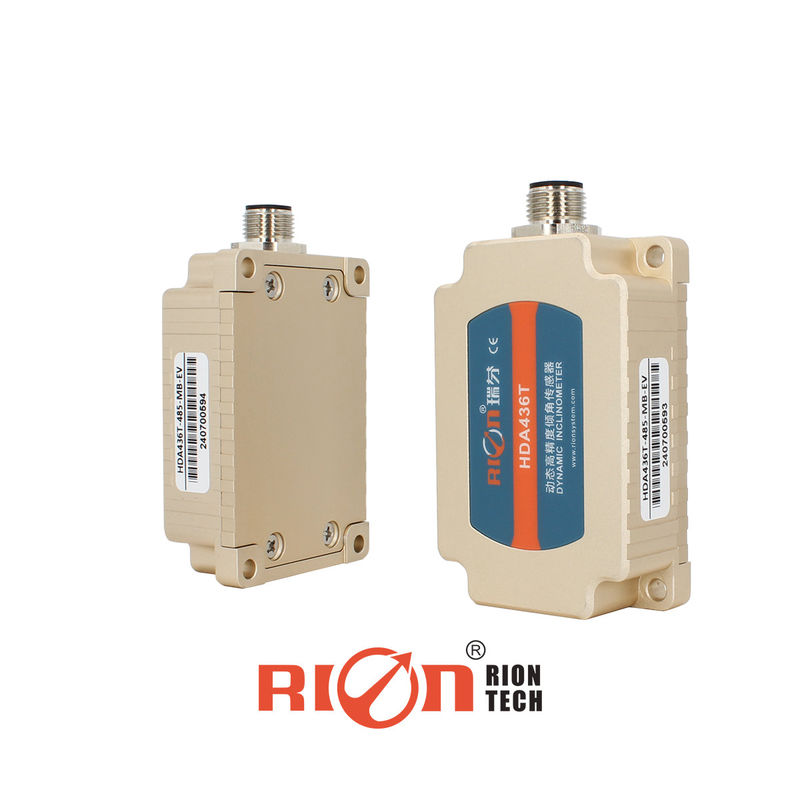

HDA436T Anti Shock dynamic tilt angle For Engineer Vehicle Inclinometer
▶ PRODUCT DESCRIPTION
HDA436T,A new generation of digital MEMS dynamic tilt sensor launched by RION Technology. It can measure the attitude parameters (roll, pitch, and azimuth) of a moving carrier, and suitable for tilt angle measurement under motion or vibration.HDA436T has a built-in high-precision acceleration and gyro sensor, and integrates the Carman filter algorithm, which can measure the real-time motion data of the carrier under motion or vibration. The signal output modes such as RS485 / RS232 / TTL are optional, and the scalability is strong.
This product adopts non-contact measuring principle, which can output the current attitude and inclination in real time. It is simple to use and does not need to retrieve the relative changes of the two surfaces.Internally integrated high-precision AD and high-precision gyro units to compensate for non-linear, orthogonal coupling, temperature drift and centrifugal acceleration in real time; greatly eliminate centrifugal errors caused by motion acceleration interference, improve product dynamic measurement accuracy; adapt to long-term complex movements Work in places and harsh environments.The product is a dual-mode sensor for both dynamic and static measurements, offering strong resistance to external electromagnetic interference. It is an ideal choice for posture measurement in industrial automation control.
▶ PRODUCT APPLICATION
★ Railway locomotive tracking
★ Oil drilling machinery
★ Shield pipe jacking application
★ Monitoring the tilt of geological instruments
★ Directional navigation of underground drilling rigs
★ Measurement of ship's navigational attitude
★ Shield tunnel pipe jacking system
★ Detection of attitude in satellite communication vehicles
★ Inclination angle-based orientation assessment
★ Measurement of tilt angles in different engineering machinery
Technical Data
| HDA436T | CONDITION | INDEX | |
| Measure range | - |
Roll ±180°, pitch ±90°, azimuth ±180° (initial value at power-down is 0°) |
|
| Measure axis | - | X axis / Y axis / Z axis | |
| Resolution | - | 0.01° | |
| Static accuracy | @25℃ | ± 0.05° | |
| Dynamic accuracy(RMS) | @25℃ | ± 0.1° | |
| Gyro | range | - | ±250°/s |
| Zero bias stability (10s mean) | - | 8.5°/h | |
| Zero Bias Instability(allan) | - | 4.5°/h | |
| Angle random walk coefficient(allan) | - | 0.25°/sqrt(h) | |
| Acceleration | range | - | ±8g |
| Bias stability(10s mean) | - | 0.02mg | |
| Bias instability(allan) | - | 0.005mg | |
| Speed random walk coefficient(allan) | - | 0.005m/s/sqrt(h) | |
| Zero point temp. coefficient | -40～85℃ | ±0.01°/℃ | |
| Sensitivity temp. coefficient | -40～85℃ | ≤100ppm/℃ | |
| Power-on startup time | 1S | ||
| Response time | 0.01S | ||
| Output signal | RS485/RS232/TTL | ||
| Electromagnetic compatibility | According to EN61000 and GBT17626 | ||
| MTBF | ≥ 98000 hours / time | ||
| Insulation resistance | ≥100 Megohm | ||
| Impact resistance | 100g @ 11ms,3 axial direction (half sinusoid) | ||
| Anti-vibration | 10grms,10～1000Hz | ||
| Waterproof level | IP67 | ||
| Cable | Standard without wiring, optional 2m M12 aviation plug with PVC unshielded cable | ||
| Weight | ≤165g (excluding cables) | ||
INSTALLATION METHOD
