Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ISO
Model Number: HCM370-232
Payment & Shipping Terms
Minimum Order Quantity: 1 Units
Price: $450.00/Units
Packaging Details: 1pcs digital compass in each inner box , 200pcs /ctn
Delivery Time: 7 days for sample
Payment Terms: T/T, Paypal
Supply Ability: 1000 pcs per month
Heading Accuracy: |
0.5° |
Roll Measure Range: |
±180° |
Tilt Resolution: |
0.1° |
Tilt Accuracy: |
<0.2°(Full Range) |
Working Tempaccuracy: |
-40℃~+85℃ |
Pitch Range: |
+/-85° |
Digital Compass MTBF: |
≥40000 Hours/time |
Production: |
IP67 |
Heading Accuracy: |
0.5° |
Roll Measure Range: |
±180° |
Tilt Resolution: |
0.1° |
Tilt Accuracy: |
<0.2°(Full Range) |
Working Tempaccuracy: |
-40℃~+85℃ |
Pitch Range: |
+/-85° |
Digital Compass MTBF: |
≥40000 Hours/time |
Production: |
IP67 |
INTRODUCTION

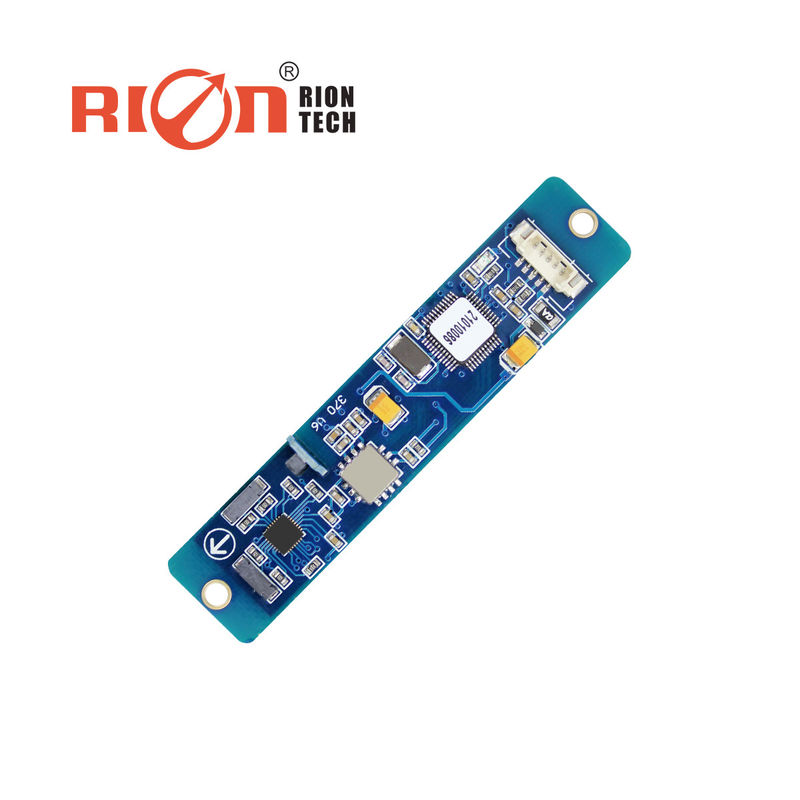

HCM370B-HCM375B is a high accuracy 3D digital compass of strip shape, its width is only 1.6cm, IP67 protection grade, suitable for many harsh environment such as drilling measurement. it adopts advanced hard iron and soft iron calibration algorithm, it can provide the high precision heading value output when both pitch and roll angle at any angle within 360°. it is small and low power consumption, suitable for current miniaturization sensitive measurement system. Sealed complete item and signal board are available.
HCM370B-HCM375B integrated patented three -axis flux-gate technology. It calculates heading value in real-time by CUP, and perform heading value compensation in wide tilt range by using three axis accelerometer. It is high performance and excellent stability compass sensor. Its volume is small, power consumption is low. It could widely used in many application such as antenna installation, vehicle and integrated system, and so on.
▶ APPLICATION
● Satellite antenna search satellite
● Marine navigation surveying and mapping
● GPS integrated navigation
● Antenna servo control
● Infrared imager
● Laser range finder
● Map for plotter
● ROV underwater robot navigation
● Oceanography measurement instruments
● Special occasion robot
| HCM370B / HCM375B Index | ||
| Heading | Heading Accuracy | 0.5° Tilt < 10° |
| 2.0° Tilt < 60° | ||
| 3.0° Tilt < 80° | ||
| Resolution | 0.1° | |
| Tilt | Pitch Accuracy | 0.1°<15° (Measure Range) |
| 0.1°<30°(Measure Range) | ||
| 0.1°<60°(Measure Range) | ||
| 0.2°<85°(Measure Range) | ||
| Pitch Range | ±85° | |
| Roll Accuracy | 0.1°<15°(Measure Range) | |
| 0.1°<30°(Measure Range) | ||
| 0.1°<60°(Measure Range) | ||
| 0.2°<180°(Measure Range) | ||
| Roll Range | ±180° | |
| Resolution | 0.1° | |
| Calibration | Hard Magnetic Calibration | Available |
| Soft Magnetic Calibration | Available | |
| Magnetic Filed Interference Calibration Method |
Rotate 360° Horizontally; Vertical Rotation(Optional) |
|
| RS-232/RS485/TTL | 5Pin Quick Plug Connector | |
| Interface | Start Delay | <50ms |
| Max Output Rate | 20Hz/s | |
| Communication Rate | 2400 TO 19200baud | |
| Output Format | Binary High Performance Protocol | |
| Power Supply | Power Voltage | (Default)DC+5V |
| Current(Max) | 30ma | |
| Ideal Current | 26ma | |
| Sleep Mode | TBD | |
| Environment | Working Temp. | -40℃~+85℃ |
| Storage Temp. | -40℃~+100℃ | |
| Anti-Shock Performance | 100g | |
| Protection Level | IP67 | |
| Electromagnetic Compatibility | According TO EN61000 and BT17626 | |
| Mtbf | ≥40000 Hour/Time | |
| Insulation Resistance | ≥100M.O. | |
| Anit-Impact | 100g@11ms,3Times/Axis(Half Sinusoid) | |
| Anti--Shock | 10grms,10～1000Hz | |
| Dimension | L110×W19.5×H19.5mm | |
| Weight | 70g(Not Include Cable) | |
