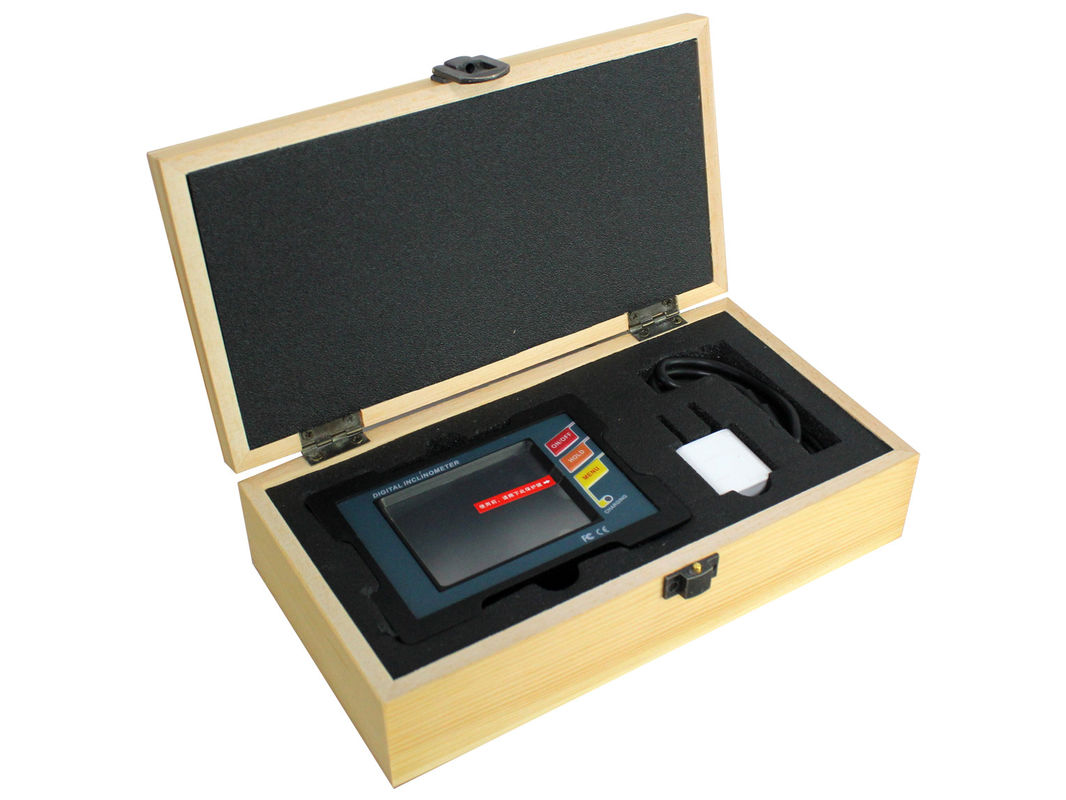

OEM 2 Axis Mini Digital Protractor 0.01 Deg

▶ GENERAL DESCRIPTION
DMI810&DMI820 is a digital display inclinometer which took RION company three years to develop professional for various industry angle controling and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. Single and double axis measurement, measurement range ±30° measurement, resolution 0.001°, highest accuracy <0.005° full value,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use, DMI810 series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !

▶ FEATURES

★ Best accuracy:<0.005° ★ Repeatability:0.003°

★ Angle resolution:0.001° ★ Maximum measure range:±30°

★ User can set the alarm value by himself ★ Data store function

★ Absolute/Relative measurement can switch ★ Both sides and bottom can measure

★ Double benchmark strong magnet installation ★ Working Temperature : -10°～ +70℃

★ Auto-angle interleaved compensation function ★ Auto temperature drift compensation

★ User can calibrate ZERO by himself ★ Built-in rechargable industry batteries

★ Night vision fours colors screen ★ IP54 protection class

★ °/mm/m Dual units switch function ★ Filter frequency optional

★ Three kinds of measurement mode selectable (radian, angle, mm)

▶ APPLICATION

★ Building construction ★ Automobile four-wheel testing ★ Road slope

★ Machinery installation ★ Piping installation ★ Industrial platform

★ Turntable testing ★ Pan unit angle detection ★ Production jig

▶ TECHNICAL DATA

PARAMETER	DMI810		DMI820			UNIT
Angle Measure range	±15 °	±30 °		±15 °	±30 °	°
MM measure range	267	577		267	577	mm/m
Meausre axis	Single axis	Single axis		Single axis	Single axis
Highest measurement accuracy (full range)	<0.005	<0.01		<0.005	<0.01	°(RMS)
Angle Measure resolution	0.001	0.001		0.001	0.001	°
Repeatability	0.003	0.003		0.003	0.003	°
MM measure accuracy	0.1	0.2		0.1	0.2	mm/m
Three measurement mode selectable	①Angle ②degree, minute, second ③mm/m three modes can be set					/
MM measure res	0.02					mm/m
LCD	64 true colors night vision display screen					/
LCD visible area size	L57.6*W43.2					mm
Working temperature	-10°~ +70℃					℃
Working humidity	85					%RH
Power supply	3.7V Charging Lithium battery					V
Ideal charging time	5					h
Battery sustainable charging times	11					h
Equipped with PC software	VC software					/
Data output signal	USB1.1 (Virtual Serial Device)					/
Connect plug in	Standard USB connector, rechargeable					/
Shock resistance	10g@11ms,3 Axial Direction (Half Sinusoid)					g
Shock impact	10grms,10~100Hz					g
Waterproof grade	IP54					/
Material	Aluminum alloy Anodizing					/
Size	L107*W75*H27.1					mm
Weight	300					g
