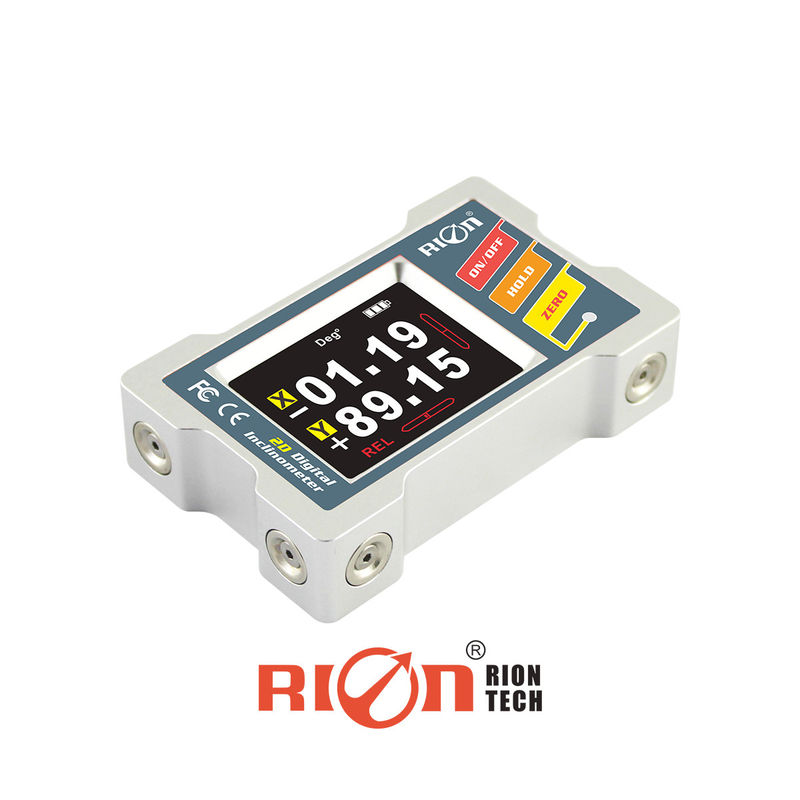

DMI420 Dual-Axis Digital Tilt Meter Fast Response, Data Storage, Calibratable

DMI420 Dual-Axis Digital Tilt Meter: Fast Response, Data Storage, Calibratable

Product Description:

DMI410&DMI420 is a digital display inclinometer which took RION company three years to develop professional for various industry angle control and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,a and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. DMI410 single axis ±180° measurement, DMI420 dual axis ±90° measurement,resolution 0.01 °,accuracy <0.05 degree full-scale,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally, very convenient to use, This product series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !

Features:

•  Auto-angle interleaved compensation function
•  Auto temperature drift compensation
•  User can calibrate by himself
•  Built-in recharge industry battaries
•  Night vision fours colors screen
•  IP54 protection class

Technical Parameters:

PARAMETERS	DMI410 DMI420
Measurement axis	Single axis	Dual axis
Angle measurement range	±180 °	±90 °
Angle measurement accuracy	0.05 °(full range)	0.05 °(full range)
Angle measure resolution	0.01°	0.01°
mm/m measure range	±999.9mm/m	±999.9mm/m
mm/m measurement accuracy	0.9mm/m(full range)	0.9mm/m(full range)
mm/m measurement resolution	0.1mm/m	0.1mm/m
LCD visible area size	L40*W32mm
Working temperature	-10℃～ +70℃
Working humidity	85%RH
Power supply	3.7V Charging Lithium battery
Ideal charging time	3h
Battery continuous working time	8h(±0.5)
Data output signal	Standard 5Pin USB connector
Anti-vibration	10g@11ms,3 Axial Direction (Half Sinusoid)
Impact resistance	10grms,10～100Hz
Waterproof level	IP54
Material	Metal aluminum
Size	L83*W19*H53mm
Weight	140g

Applications:

•  Building construction
•  Automobile four-wheel testing
•  Road slope
•  Machinery installation
•  Piping installation
•  Industrial platform
