Product Details
Place of Origin: China
Brand Name: RION
Certification: CE
Model Number: DMI850
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: $2345.00/Pieces
Packaging Details: 1pcs / inner wodeen box with thick sponge inside, 50pcs packed in strong & safe carton
Delivery Time: 7 work days
Payment Terms: T/T, , Paypal
Supply Ability: 30000 Piece/Pieces per Week
Working Temperature: |
-10℃～ +70℃ |
Measuring Axis: |
Single-axis |
Measurement Range: |
±30° |
Protection Class: |
IP54 |
Best Accuracy: |
<0.002 (＜5°)、<0.003 (5°-30°) |
Working Humidity: |
85%RH |
Power Supply: |
2 Pcs AA Battery |
Weight: |
1200g |
Working Temperature: |
-10℃～ +70℃ |
Measuring Axis: |
Single-axis |
Measurement Range: |
±30° |
Protection Class: |
IP54 |
Best Accuracy: |
<0.002 (＜5°)、<0.003 (5°-30°) |
Working Humidity: |
85%RH |
Power Supply: |
2 Pcs AA Battery |
Weight: |
1200g |

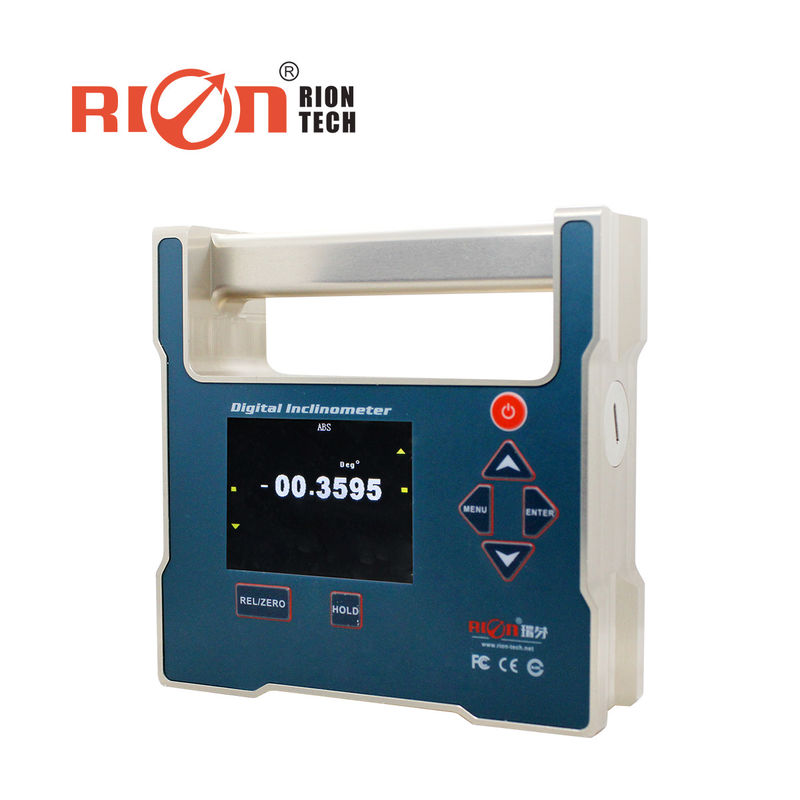

DMI850 is one Single axis Digital Inclinometer developed by RION TECHNOLOGY based on high precise angle measurement platform, it adopts the quartz pendulum slice of the earth's gravity induction component to solve the object level tilt angle. The built-in 32 bit microprocessor and collocation 32 bit high precision analog-to-digital converter, can highly subdivision sampling for the front weak current and signal ratio of inclination, can meet the highest level accuracy of 0.002°, the resolution is up to 0.0005°. It can perform on-site data playback and chart analysis, and is the best instrument for high-precision platform leveling and measurement.
| DMI850 |
PARAMETER | unit |
|
Measurement Range |
±30 | ° |
| Measuring Axis | Single-axis | |
| Best Accuracy | <0.002 (＜5°),<0.003 (5°-30°) | °(RMS) |
| Resolution | 0.0005 | ° |
| Measurement Mode | Two modes can be set: degree, mm / m | / |
| Lcd | 64 color true color luminous display | / |
| Lcd Visible Size | L60*W45 | mm |
| Operating Temperature | -10°～ +70℃ | °/℃ |
| Working Humidity | 85 | %RH |
| Power Supply | 2 Pcs AA battery | / |
| Battery Continuous Working Time | 6 | h |
| Anti-Vibration | 10g @ 11ms, triaxial and same (half sine wave) | / |
| Impact Resistance | 10grms,10～100Hz | / |
| Weight | 1200 | g |
| Protect Class | IP54 | / |
| Material | Anodizing of aluminum alloy | / |
| Size | L140*W140*H45mm | mm |
★ Building construction
★ Mechanical installation
★ Pipe installation
★ Industrial platform
★ Road slope
★ Pan-tilt angle detection
★ Production fixture
