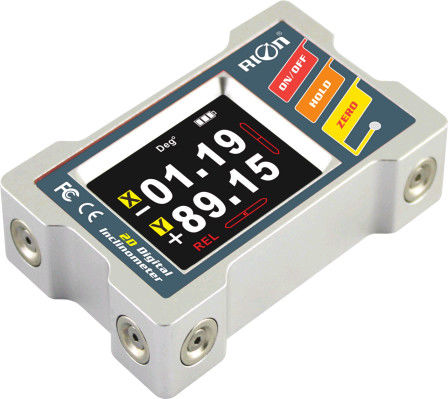

CE Ip54 Digital Inclinometer Auto Temperature Drift Compensation Electronic Tilt Sensor

Name: CE Ip54 Digital Inclinometer Auto Temperature Drift Compensation Electronic Tilt Sensor
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: DMI410,DMI420
Price: 234.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE

Model Number: DMI410,DMI420

Payment & Shipping Terms

Minimum Order Quantity: 1 Pieces

Price: $234.00/Pieces

Packaging Details: 1 unit digital inclinometer in each inner wodeen box with thick sponge inside, 50pcs packed in strong & safe carton

Delivery Time: 5 days for sample

Payment Terms: T/T, Paypal

Supply Ability: 3000/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              ce ip54 digital inclinometer, electronic ip54 digital inclinometer, ip54 electronic inclinometer


Warranty:	1 Year	Customized Support:	OEM
Digital Inclinometer Measuring Range:	+/-180deg	Accuracy:	<0.05deg
MM Measuring Range:	0~±999.9mm/m	MM Measuring Accuracy:	0.9(full Range)mm/m(RMS)
Product Size:	L83W53H19.2mm	Resolution:	0.01°
Data Output Signal:	Standard 5Pin USB Connector	LCD Visible Area Size:	L40*W32 Mm
Power Supply:	3.7VCharging Lithium Battery	Working Temp.:	-10 ~ 70C

Warranty:	1 Year
Customized Support:	OEM
Digital Inclinometer Measuring Range:	+/-180deg
Accuracy:	<0.05deg
MM Measuring Range:	0~±999.9mm/m
MM Measuring Accuracy:	0.9(full Range)mm/m(RMS)
Product Size:	L83W53H19.2mm
Resolution:	0.01°
Data Output Signal:	Standard 5Pin USB Connector
LCD Visible Area Size:	L40*W32 Mm
Power Supply:	3.7VCharging Lithium Battery
Working Temp.:	-10 ~ 70C

Description

CE Ip54 Digital Inclinometer Auto Temperature Drift Compensation Electronic Tilt Sensor

DMI410/DMI420 Digital Inclinometer Auto temperature drift compensation Electorninc Tilt Sensor for Production ji

Key Features

★ Auto-angle interleaved compensation function

★ Auto temperature drift compensation
★ User can calibrate by himself

★ Built-in recharge industry battaries
★ Night vision fours colors screen

★ IP54 protection class
★ °/mm Dual units switch function

★ 100g High anti-impact

Application

★ Building construction

★ Automobile four-wheel testing

★ Road slope

★ Machinery installation

★ Piping installation

★ Industrial platform

★ Turntable testing

★ Cloud deck angle detection

★ Production ji

DMI410 is a digital display inclinometer which took RION company three years to develop professional for various industry angle control and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,a and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. DMI410 is a uniaxial 360deg measurement, resolution 0.01 °,accuracy <0.05° degree full-scale,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use, In addition, supporting the selection of DMI410 (SMI410) with the use of separate measurement, used in combination with the Division LCA series tilt sensor, the transmission mode wireless or wired optional, wireless using one-to-one band transmission,transmission straight line distance> 10m, the cable transmission standard 1 meter (can be customized long distance), DMI410 series
has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an
absolute competitive advantage in the international market !

PARAMETERS	DMI410 DMI420
Measurement axis	Single axis	Dual axis
Angle measurement range	±180 °	±90 °
Angle measurement accuracy	0.05 °(full range)	0.05 °(full range)
Angle measure resolution	0.01°	0.01°
mm/m measure range	±999.9mm/m	±999.9mm/m
mm/m measurement accuracy	0.9mm/m(full range)	0.9mm/m(full range)
mm/m measurement resolution	0.1mm/m	0.1mm/m
LCD visible area size	L40*W32mm
Working temperature	-10℃～ +70℃
Working humidity	85%RH
Power supply	3.7V Charging Lithium battery
Ideal charging time	3h
Battery continuous working time	8h(±0.5)
Data output signal	Standard 5Pin USB connector
Anti-vibration	10g@11ms,3 Axial Direction (Half Sinusoid)
Impact resistance	10grms,10～100Hz
Waterproof level	IP54
Material	Metal aluminum
Size	L83W19H53mm
Weight	≤140g
