Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE
Model Number: MCA428T
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: US$26.00
Packaging Details: 1pcs/ inner box , 100pcs/ctn
Delivery Time: 7 DAYS
Payment Terms: T/T
Supply Ability: 30000 Unit/Units per Month
Usage: |
Level Sensor |
Theory: |
MEMS |
Housing Material: |
Electroplated Metal Shell |
Resolution: |
0.05 ° |
Starting Time: |
0.2 S |
Response Time: |
0.01S Reaction Rate |
Output Rate: |
5HZ ~100HZ (optional ) |
Working Temp.: |
-40 ~85C° |
Usage: |
Level Sensor |
Theory: |
MEMS |
Housing Material: |
Electroplated Metal Shell |
Resolution: |
0.05 ° |
Starting Time: |
0.2 S |
Response Time: |
0.01S Reaction Rate |
Output Rate: |
5HZ ~100HZ (optional ) |
Working Temp.: |
-40 ~85C° |

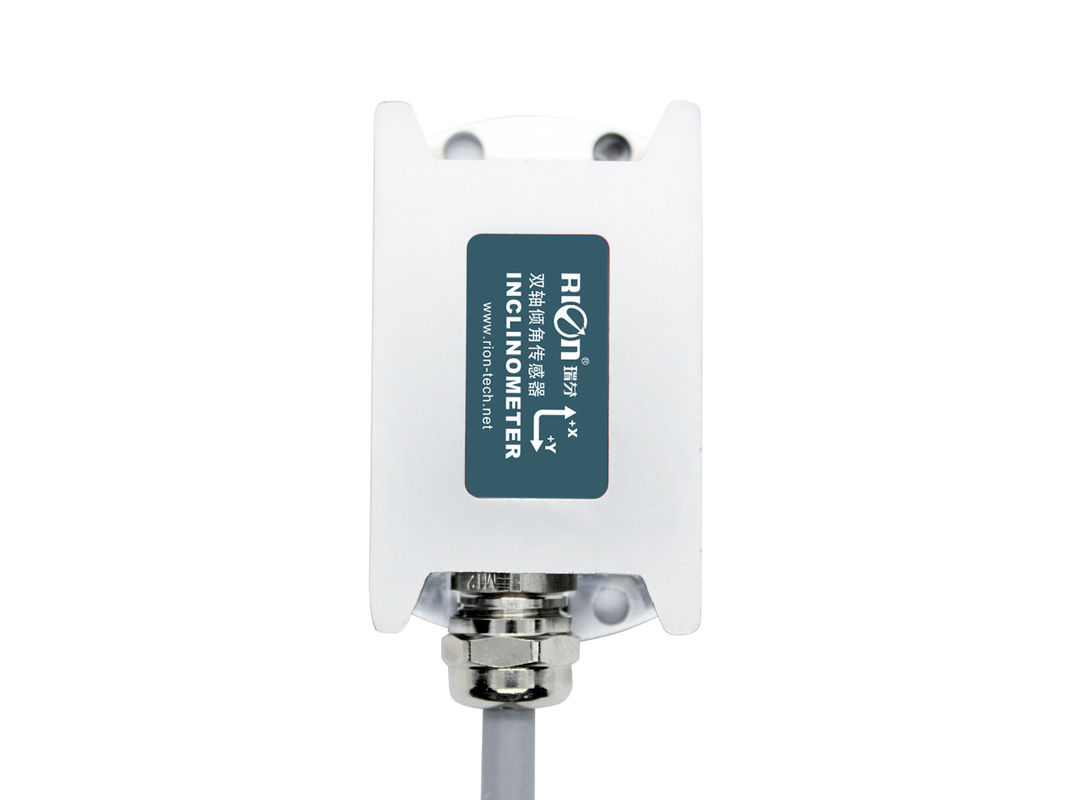

MCA428T Electroplated Metal Shell Dual Axis Inclinometer , Mems Tilt Angle Sensor
Desc.
MCA418T/428T Series Tilt Sensors provide a cost-effective, full-attitude tilt measurement solution. Featuring an advanced anti-interference design, they integrate a cutting-edge capacitive MEMS (Micro-Electro-Mechanical Systems) sensing unit, ensuring stable performance across a wide temperature range with exceptional vibration resistance. With a service life of up to 10 years, they offer long-term reliability.
These sensors measure tilt angles based on a non-contact principle, detecting gravitational components via an internal capacitive MEMS unit for real-time angle measurement. Easy to install, they require no fixed or rotating shafts—simply mount them onto the target object for precise readings. Supporting multiple mounting options, they adapt to diverse measurement needs, making them ideal for engineering machinery,
agricultural equipment, and industrial systems.
| MCA418&428T | CONDITION | PARAMETER | UNIT |
| Output current | 4-20 | mA | |
| Resolution | / | 0.1 | ° |
| Accuracy | @25℃ | ±0.2 | ° |
| Response Time | / | 0.05 | S |
|
Temp. Drift characteristics |
-40℃～85℃ | ±0.5 | ° |
| Output Load | >500 ohm | ||
| Operating hours | 50000 hours/time (no fault) | ||
| Insulation Resistance | >100 ohm | ||
| Anti-shock | 10grms,10~1000Hz | ||
| Impact Resistance | 100g@11ms,3 Axial Direction (Half Sinusoid) | ||
| Shell material | Electroplated metal housing | ||
| Weight | ≤200g(Including 1m line) | ||
| Quality System |
IATF16949: 2016 (Certificate No.: T178487) GJB9001C-2017 (Registration No.: 02622J3179R0M) |
||
Features :
●Six installation methods
●High vibration resistance:>3500g
Application :
