Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE
Model Number: DMI420
Document: DMI410 DMI420 DIGITAL DISPL...ER.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1 Pieces
Price: $234.00/Pieces
Packaging Details: 1 unit digital inclinometer in each inner wodeen box with thick sponge inside, 50pcs packed in strong & safe carton
Delivery Time: 5 days for sample
Payment Terms: T/T, Paypal
Supply Ability: 3000/month
Warranty: |
1 Year |
Digital Inclinometer Measuring Range: |
+/-90deg |
Accuracy: |
<0.05deg |
Product Size: |
L83*W53*H19.2mm |
Resolution: |
0.01° |
Power Supply: |
3.7V Charging Lithium Battery |
Working Temp.: |
-10 ~ 70C |
Warranty: |
1 Year |
Digital Inclinometer Measuring Range: |
+/-90deg |
Accuracy: |
<0.05deg |
Product Size: |
L83*W53*H19.2mm |
Resolution: |
0.01° |
Power Supply: |
3.7V Charging Lithium Battery |
Working Temp.: |
-10 ~ 70C |

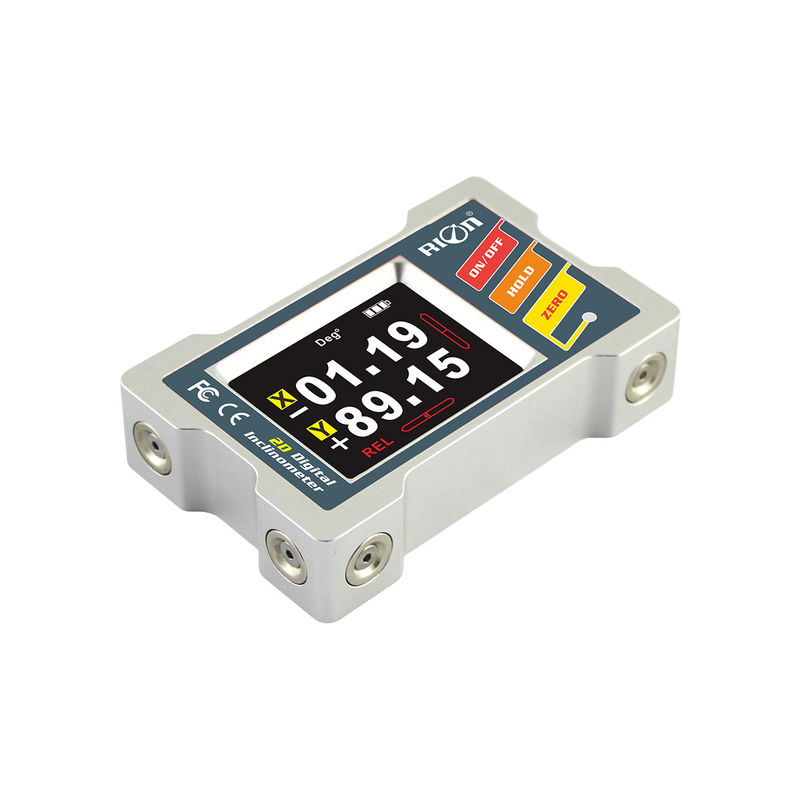

DMI420 Precise Clinos Dual Axis Digital Angle Sensor DMI420 3.7V With LED Screen
▶ SPECIFICATIONS
| PARAMETERS | DMI410 DMI420 | |
| Measurement axis | Single axis | Dual axis |
| Angle measurement range | ±180 ° | ±90 ° |
| Angle measurement accuracy | 0.05 °(full range) | 0.05 °(full range) |
| Angle measure resolution | 0.01° | 0.01° |
| mm/m measure range | ±999.9mm/m | ±999.9mm/m |
| mm/m measurement accuracy | 0.9mm/m(full range) | 0.9mm/m(full range) |
| mm/m measurement resolution | 0.1mm/m | 0.1mm/m |
| LCD visible area size | L40*W32mm | |
| Working temperature | -10℃～ +70℃ | |
| Working humidity | 85%RH | |
| Power supply | 3.7V Charging Lithium battery | |
| Ideal charging time | 3h | |
| Battery continuous working time | 8h(±0.5) | |
| Data output signal | Standard 5Pin USB connector | |
| Anti-vibration | 10g@11ms,3 Axial Direction (Half Sinusoid) | |
| Impact resistance | 10grms,10～100Hz | |
| Waterproof level | IP54 | |
| Material | Metal aluminum | |
| Size | L83*W19*H53mm | |
| Weight | ≤140g | |
▶ KEY FEATURES
★ Auto-angle interleaved compensation function
★ Auto temperature drift compensation
★ User can calibrate by himself
★ Built-in recharge industry battaries
★ Night vision fours colors screen
★ IP54 protection class
★ Angle/length dual unit switch
★ 100g High anti-impact
▶ APPLICATION
★ Construction of buildings
★ Vehicle four-wheel assessment
★ Road gradient
★ Equipment setup
★ Pipe system setup
★ Manufacturing platform
★ Rotating platform testing
★ Cloud level angle measurement
★ Manufacturing jig
▶ ORDER INFORMATION
| Item No. | Order description |
| DMI410 | Standard single axis digital display inclinometer /measure range ±180°(length 0～±999.9mm/m) |
| DMI420 | Standard Dual axis digital display inclinometer /measure range ±90°(length 0～±999.9mm/m) |
